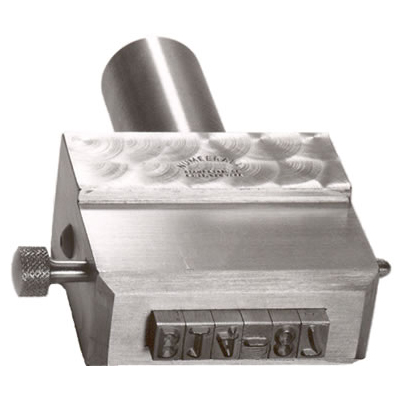

The Model 23 Type Holder can be modified in many ways to suit specific marking situations.
The unit shown is just a few of the many variations which can be adapted to suit specific applications. Contact our sales engineers with your requirements for a quotation.
Also see our standard steel type.
- Extended Capacity
- Multiple lines, with or without partition walls (Note: All multi-line type holders utilize set screws instead of type holding pins. If type holding pins are desired, a partition wall is required and must be stated when ordering. If not stated, partition walls will not be used.)
|
Model 23P-2
2 Line
|
10
Pieces |
1/8" |
3/4" x 2" |
N/A |
|
|
Model 23P-2
2 Line with Partition
|
10
Pieces
per line |
1/8" |
3/4" x 2" |
1/8" |
|
|
Model 23P-3
3 Line with Partitions
|
16
Pieces
per line |
1/8" |
Dovetail |
1/32" |
|
|
Model 23P Special King Size
|
18
Pieces |
1/2" |
2" x 2" |
N/A |
|
Standard Stocked Type sets.
Spec and sizes below.
The following chart details the information on standard stocked type.
|
Character Size
|
Standard Body Dimensions
|
|
a
|
b
|
c
|
Notch Size (radius)
|
e
|
| 1/32" |
1/16" |
1/4" |
7/8" |
1/16" |
5/16" |
| 1/16" |
1/16" |
1/4" |
7/8" |
1/16" |
5/16" |
| 3/32" |
3/32" |
1/4" |
7/8" |
1/16" |
5/16" |
| 1/8" |
1/8" |
1/4" |
7/8" |
1/16" |
5/16" |
| 5/32" |
5/32" |
1/4" |
7/8" |
1/16" |
5/16" |
| 3/16" |
3/16" |
5/16" |
1 1/4" |
3/32" |
7/16" |
| 1/4" |
1/4" |
3/8" |
1 1/4" |
3/32" |
7/16" |
| 5/16" |
5/16" |
7/16" |
1 1/4" |
3/32" |
7/16" |
| 3/8" |
3/8'' |
1/2" |
1 1/4" |
3/32" |
7/16" |
| 1/2" |
1/2" |
5/8" |
1 1/4" |
3/32" |
7/16" |
Consult factory for pricing and availability
