Marking Device Products

200 Watt

Designed for a production line environment, these units are ideal tools for semi-automated branding operations. These high performance tools offer a very economical solution for repetitive branding.

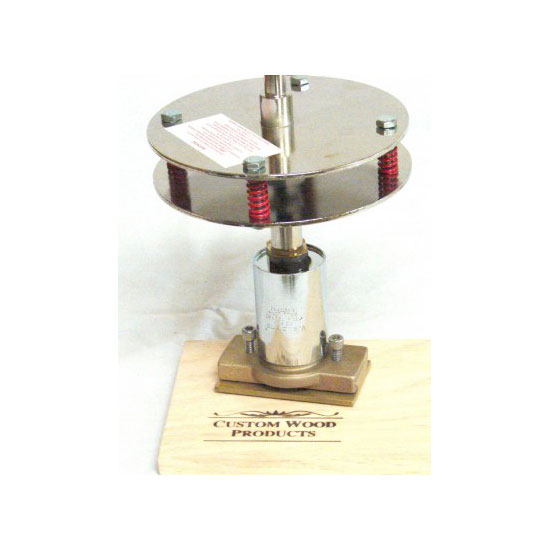

Benefits of the Dual-Disc Isolating Shaft Assembly

1. This assembly protects the drill press by preventing the branding tool's heat from rising into the chuck and bearings of the drill press, which would otherwise prematurely dry out the lubricating oils in the drill press.The dual-disc provides a shield against convection currents and a barrier that prevents heat transfer through the shaft.

2. It allows for adjusting the level of the branding head to match that of the surface being branded.Thus, brands are better and more uniform.

Easy Installation

DP units are easily and quickly installed.Just insert the unit into the chuck and plug it into a grounded power outlet.

Tool Specifications:

Voltage: 120 or 220 VAC.

Power Cord: 3-conductor, insulated 1.5 feet long.

Heating Element: Cartridge in Bronze housing.

Heater Shroud:  Plated Steel.

Heater Insulator:  Ceramic Fiber.

Shaft and:  Plated steel.

Dual Discs:  8-3/4" overall incl. head.

Length:  8" from chuck incl. head.

A DP unit consists of the following components:

1. Rigid /" diameter steel shank.

2. Spring mounted, dual-disc isolating shaft assembly.

3. Performance rated heating element in a heat containment shroud.

4. Interchangeable branding heads - various sizes & types available.

5. Grounded plug with 18" insulated cord set.

Please contact Customer Service with artwork requirements.
