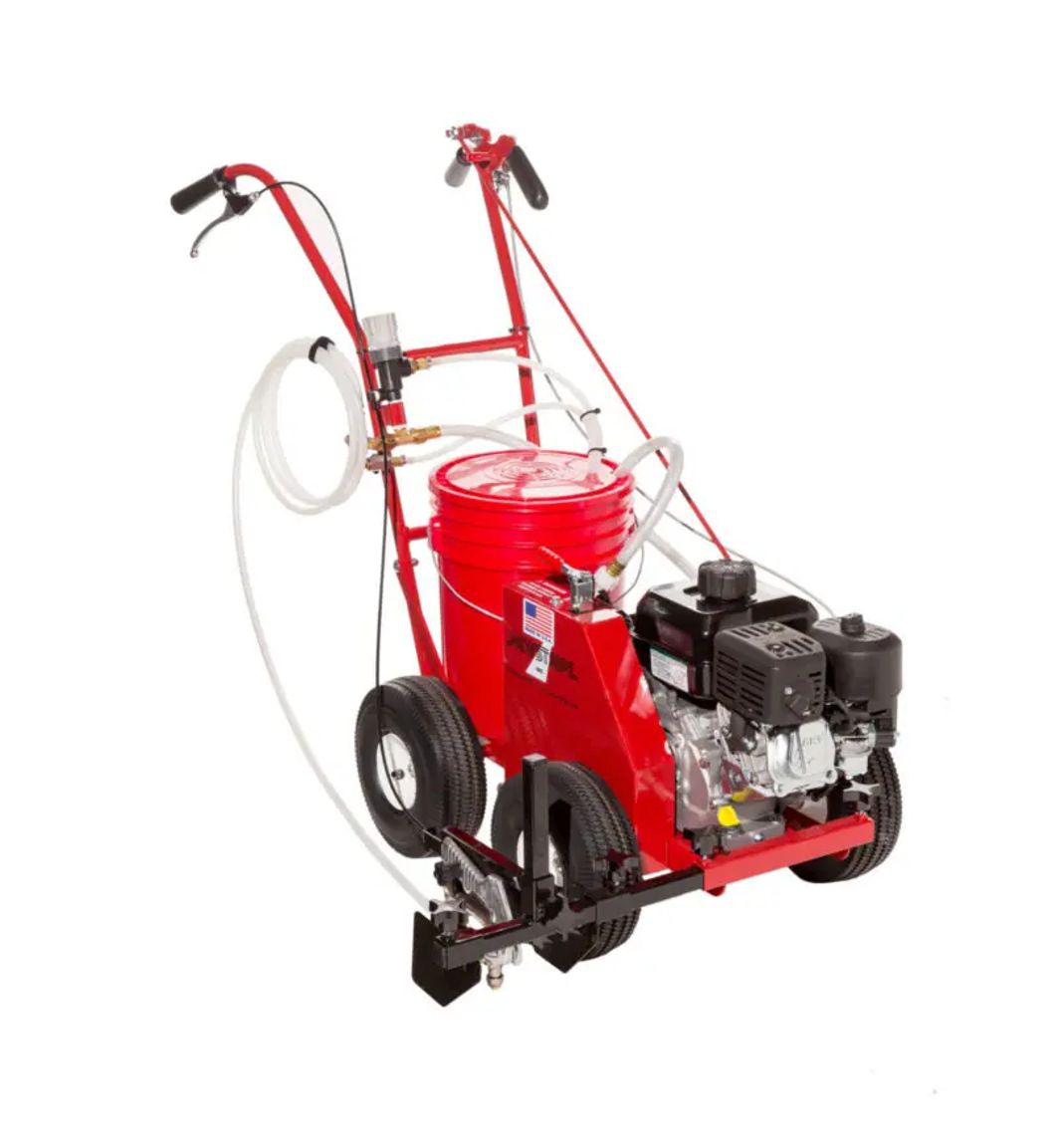

The EcoLiner SP features:

No Messy Pouring and Easy to Use - Just place a standard 5-gallon pail of premixed paint on the machine and you are ready to paint your field. Plus, changing color could not easier.

Safe - No hazardous pressurized tanks. No need to release pressure to add paint or clean.

Cleanup is a Snap - When the job is done just remove the pail, reseal it for future use, pump a little clear water through the system, and you are ready for the next field marking job.

Paint fields in Half the Time - For perfect stadium marking use the Bi-Directional spray head paints both the front and back of the grass at the same time. or, shut one nozzle off for striping practice fields and use half the paint. Line width is adjustable from 2"-6".

Never Stop to Stir the Paint Again - Recirculating pump keeps the paint continually mixed with no settling. You no longer need to stop and stir.

No More Clogged Tip or Filter - The Eco-Liner SP feature a large replaceable foot filter on the intake hose. Cleaning the filter takes less than 30 seconds.

Power to Spare - The Eco-Liner SP field striping machine features a heavy duty, 45 psi diaphragm pump coupled directly to a 4.3 hp Robin industrial gas engine. The simple friction drive system is foolproof and easy to maintain.

Build to Last – American Made all welded steel construction and quality components mean the Eco-Liner will give you years of service.

36-Month Warranty - The longest available.

Dimensions:    38"Lx25"Wx58"H
Ship Weight:   230 lbs.
Power:             4.3 hp Robin
Capacity:         Accepts any standard 5 gallon pail, removable cover with fittings, snaps on any pail.
Drive:              Foolproof, low maintenance, traction drive system with easy to use hand clutch.
Wheels:           Four 10" pneumatic tires with oil impregnated bushings, with 1/2" steel axle.
Spray Head:    Bi-Directional spray head, shut off one nozzle to save paint as on practice fields. Adjustable 2"-6" line width.
Frame:             All welded steel construction. 11 gauge formed steel plate.
Handle:            Dual handles for better control, and with cushioned grips for comfort.
Filters:             Suction foot filter on pick up tube and in-line nozzle screens. No more clogged tips.
Control:           Spring assisted, cable/hand control level located on handle.
Gauge:             0-60 paint tank pressure gauge with easy read dial. Operates at 30-35 psi.
Shut Off:          Instantaneous shut off with check valve located at spray head, no dipping.
Pump;              12 volt, 3 gpm, 40 psi constant re-circulating and maintenance free.
Prssure Valve; Adjustable to control flow of paint.
Warranty;        36 months, materials and workmanship.

Any questions please call 323-582-6461 or email us at info@HPRubberStamp.com
